Name: Grey Card Paper Smd Carrier Tape Reel Spool Cover Tape
Brand: SHENZHEN DELIXIN CO.,LTD
SKU: 8mm-88mm
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: ACE DELIXIN

Certification: ROHS,SGS

Model Number: 8mm-88mm

Payment & Shipping Terms

Minimum Order Quantity: 2000 Meters

Price: USD(0.1-6)/meter

Packaging Details: carton box packing

Delivery Time: 5-8days

Payment Terms: T/T, D/A, D/P, L/C, Western Union

Supply Ability: 200000meters per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                SMT Packing Carrier Tape Reel, SMD Packing Carrier Tape Reel, Plastic Smd Carrier Tape Spool


Color:	Black Or Clear	ESD Value:	10E5 Or NO
Size:	Width 8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm	Material:	PS/PC
Cover Tape:	Can Provide	Reel:	Can Provide

Color:	Black Or Clear
ESD Value:	10E5 Or NO
Size:	Width 8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm
Material:	PS/PC
Cover Tape:	Can Provide
Reel:	Can Provide

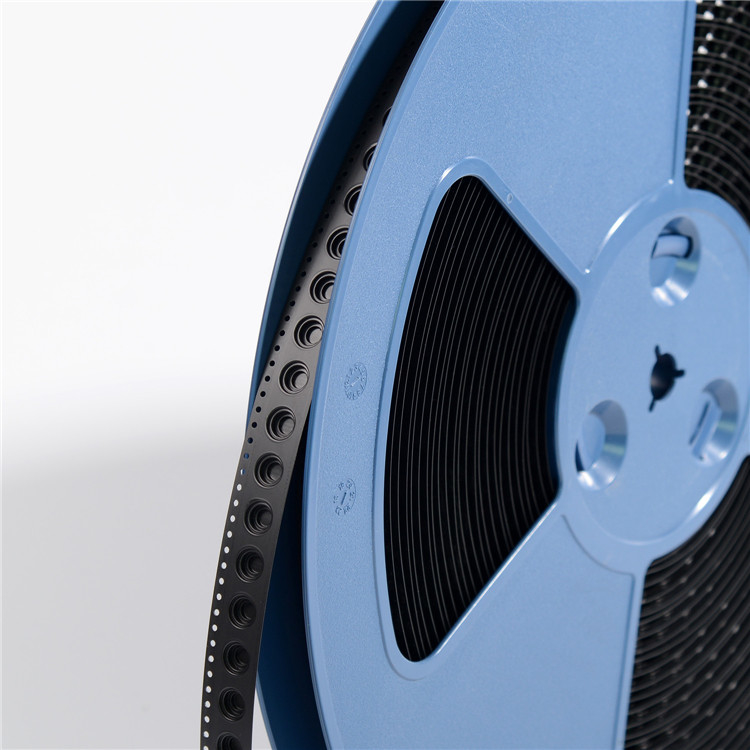

Grey Card Paper Smd Carrier Tape Reel Spool Cover Tape

Factory Directly Grey Card Paper Smd Carrier Tape Reel Plastic Reel Spool Cover Tape For SMD SMT Packing

Products Description

Features

1. There are two kinds of raw materials: grey card paper or PS . 4. Different styles can be customized according to customer's products to meet customer's product packaging requirements. 3. The carton is made of K=K material to ensure that the products will not be damaged during delivery.

Carrier tape
8-104mm PS&PET&PC material,with conductive(antistatic)and non-conductive(non-antistatic) type.
Color:black/transparent
There are many existing molds for conventional universal components,and we can design carrier tapes according to customers’ components samples,which are with accurate dimensions and meet the requirement of EIA-481.
We can machine-shaping different types of carrier tapes,with ordinary type and antistatic type .We can also design molds according a quite mature stage through years’ accumulation.Now the quality of our products can absolutely meet customers’ requirements,and are widely used in different areas such as inductor,connector,IC,resistor,capacitor,swithc,fuse,transformer,screening can,LED and other SMD components.

Cover tape
Environment-friendly antistatic material,including self-adhesion type and heat-sealing type.Self-adhesion type with two colors:transparent and tawny,heat-sealing type with other two colors:transparent and semi-transparent(spay),following is the matching table of cover tape and carrier tape:


			Carrier tape (MM)
			8
			12
			16
			24
			32
			44
			56
			72
			88


			Cover Tape(MM)
			5.4
			9.3
			13.3
			21.3
			25.5
			37.5
			49.5
			65.5
			81.5



Plastic reel
Environment-friendly PS anti-static materials,blue /black/white
Size:the diameter of disk,178mm,330mm,380mm,the diameter of axis:60mm,100mm,150mm,180mm,Width:8mm-72mm,and can be mixed according to requirement.
