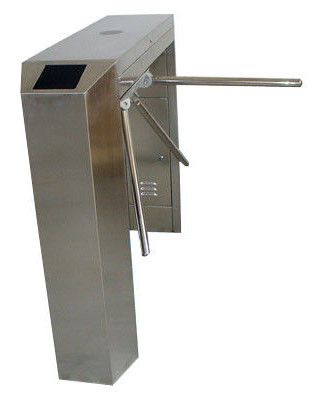

High Security Speed Gate Turnstile Stainless Steel Pedestrian Barrier Gate
High Security Speed Gate Turnstile Stainless Steel Pedestrian Barrier Gate
Product Classification
Model:DLX-213
Product Presentation
1. Structure: the entire product appearance plate adopts 304 stainless steel plate stamping forming, rustproof, durable,
2. Dimensions: Length1000xWidth280× height 1000 (mm)
3. Weight:40kg.
4. Brake lever length: 600(mm)
5. Brake lever steering: one-way and two-way (optional)
6. Working environment: indoor and outdoor(It's better to have a shelter outside)
Feature of the product:
1. Fault self-test and alarm functions,convenient user maintenance and using
2. Via the control board Built in a small dish,Programmable devices running status
3. Anti-Pinch mechanical structure,anti-bumps function, when the swing arm reset process meet resistance, within a limited time automatically stops the motor, the default delay after the reset again (until reset), and the force is very small (≤2Kg )
4. Break into protection function, when the gate signal is not received, the arm automatically locked
5. Relative with a variety of reader device attached,working when receive relay switch signal
6. Remote control and management by the management computer
7. Power-off arm Automatic open,turn on automatically closed, can meet fire safety requirements
Product parameters
◆ power supply :AC220V±20%V, 50Hz;
◆ operating environment temperature :-40℃ -70 ℃;
◆ relative humidity: less than 95%, no condensation;
◆ traffic speed: 40 people/min (IC card);
◆ dc motor: 20W/24V;
◆ input interface: standard switch signal;
◆ communication interface: RS485 communication distance: <1200 m;
◆ material: 304 stainless steel or 316 stainless steel;
◆ color: stainless steel wire drawing or spray, color optional.
To adapt to the workplace
◆ office space: business building, government offices, etc.
◆ institutions of science and education: colleges and universities, research institutes, libraries, etc.
◆ commercial service places: supermarkets, shopping malls, hotels, clubs, Banks, etc.
◆ leisure and entertainment places: parks, scenic spots, amusement parks, etc
◆ transportation station: bus station, railway station, subway station, airport, etc.
